Metrological laser 3D scanner KSCAN Magic

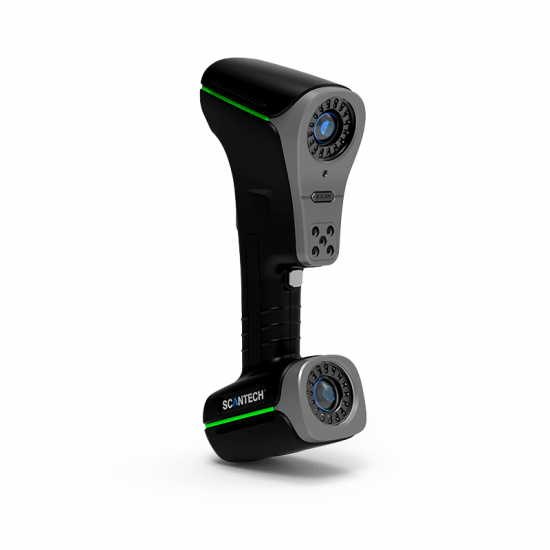

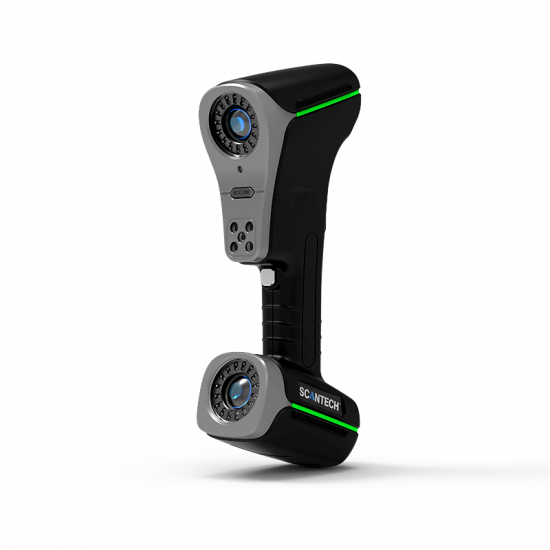

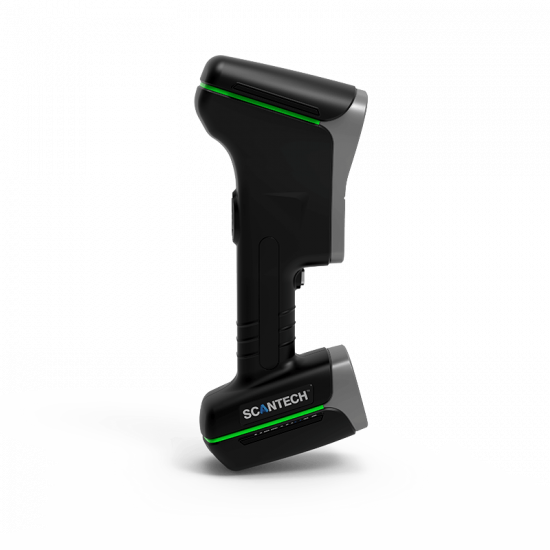

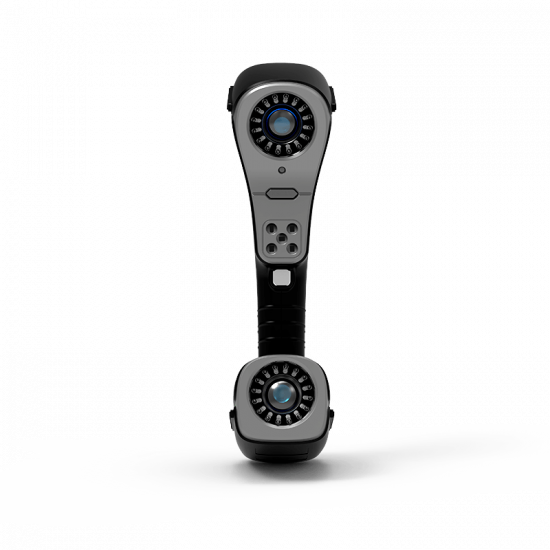

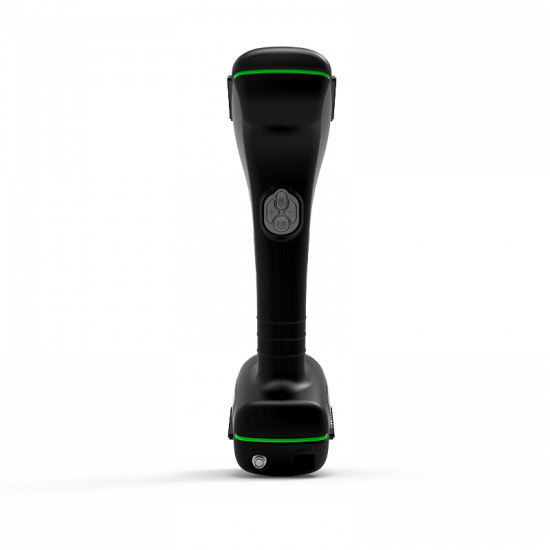

3D scanner KSCAN Magic by Scantech is a metrological-grade measuring device based on hybrid infrared and blue lasers technology, made a revolutionary breakthrough in productivity.
With its two sets of high-definition industrial cameras, KSCAN Magic offers five scanning modes:
- Scanning of a large area using an infrared laser.
- Fast scan with blue laser crosshairs.
- Precise scanning with a blue parallel laser.
- Scanning deep holes with a single blue laser line.
- Built-in photogrammetry system.
The 3D scanner has an unprecedented scanning speed of 1,350,000 dots/s, 0.020 mm accuracy, 0.010 mm detail, a scanning area of up to 1440 x 860 mm, and a depth of field of 925 mm, which greatly optimize 3D measurement workflows and accelerate product-to-market.
For digitizing the geometry of hard-to-reach or complex surfaces, the KSCAN Magic can be used in conjunction with the K-Probe portable coordinate measuring machine (CMM), providing a complete digital solution for precision measurements.
Innovative infrared laser
The KSCAN Magic laser 3D scanner uses an infrared laser for wide-range 3D scanning. Its maximum scanning area reaches 1440 × 860 mm, allowing you to quickly perform accurate 3D measurements.
Easy efficiency
KSCAN Magic provides an ultra-high scan speed of up to 1,350,000 dots/s, speeding up the workflow from setup to scan. With flexible switching of scanning modes, including photogrammetry, it meets the needs of different applications, greatly increasing work efficiency.
Extremely sharp details
In ultra-fine scanning mode, the KSCAN Magic series laser 3D scanner can accurately obtain complete data on the surface of complex objects, easily capturing every detail with a resolution of 0.010 mm.
Scanning with one laser line
The single-line laser scanning mode accurately and quickly captures 3D data on deep holes and blind spots.
Measurement by the non-destructive testing
Scanning accuracy of 0.020 mm and volumetric accuracy of 0.03 mm/m provide ultra-high precision non-destructive testing for the aerospace industry.
Application of Scantech KSCAN
Santech KSCAN Magic is an ultra-precise metrological-grade measuring device. It is used for high-precision non-destructive dimensional control in production, in the aerospace, automotive, energy industry, etc.
Buy Scantech KSCAN 3D scanner in Poland
In the Center 3D Print store you can purchase a wide range of portable 3D scanners from different manufacturers. Our experts will help you to select a 3D scanning device for your needs. Delivery throughout Europe.
We provide free training with KSCAN. For more information on training, please contact us.
