TPU S-Flex 85A filament Spectrum Filaments 1,75 mm / 0,25 kg

Flexible plastic TPU S-Flex 85A for 3D printers

TPU S-Flex 85A filament for 3D printing of flexible models with excellent impact strength and thermal insulation.

Spectrum S-Flex 85A is a material based on thermoplastic polyester polyurethane. The thread from it is characterized by a relatively easy and trouble-free process of 3D printing. In addition, the material has very good adhesion to any material of the work surface, which allows you to get the perfect result of 3D printing.

Low shrinkage and high flexibility significantly reduce the risk of so-called folding of the edges of manufactured parts. As the name implies, the hardness of the material on the Shore scale is 85A, ie Spectrum S-Flex 85A is a solid elastomer. This feature in terms of the 3D printing process reduces the risk of deformation of the thread during feeding to the print head. This allows you to print a little faster than other, more compatible elastomers.

Parts made of Spectrum S-Flex 85A are characterized by very high resistance to hydrolysis (destruction caused by the presence of water), good recyclability and very good resistance to dynamic forces. Thanks to these properties, it is possible to 3D-print parts that protect impact surfaces (bumpers, sharp edges), sealing and protective elements with high chemical resistance, as well as thermal insulators.

TPU S-Flex 85A characteristics

• High resistance to hydrolysis.

• Up to 650% elongation at break.
• Shore-A hardness of 85.
• High tensile and tear resistance.
• Low shrinkage.
• Resistance to many common industrial oils and chemicals.
• Reduced stringing while the printer is running idle.

Application of flexible S-Flex 85A

• Manufacturing of seals with a high chemical resistance.

• Production of items, which has to be used as energy adsorbents.
• Functional parts.
• All kinds of bumpers, vibration dampers, guides, protective cases, snap-fit parts, sleeves, hinges.
• Bumpers and flexible spacers.
• Sealing parts with increased stiffness.
• Spring-damping elements for use in machine production and modeling.
• Flexible bands with high strength.
• Covers and housings for various devices.

Packaging

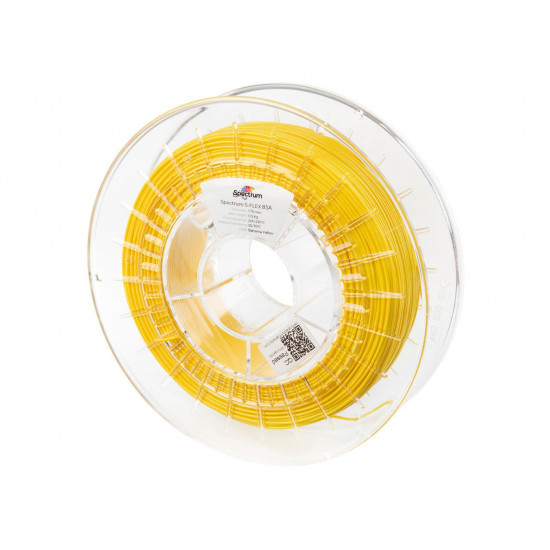

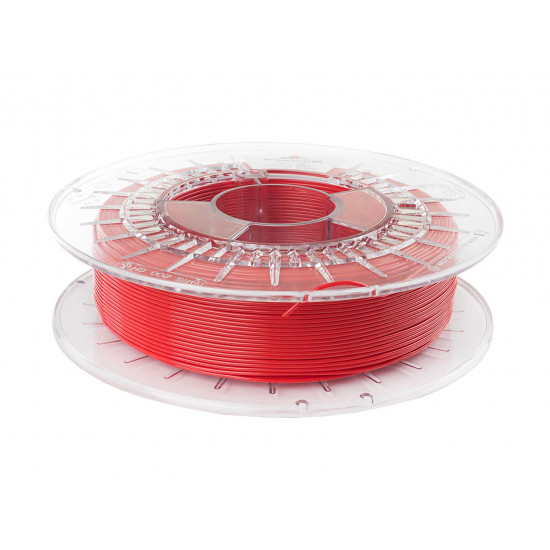

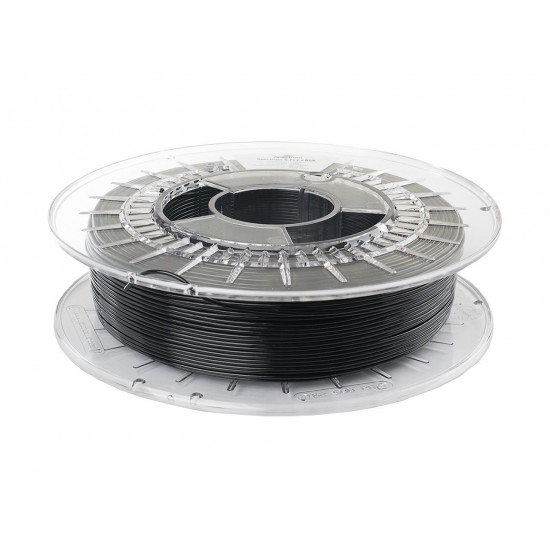

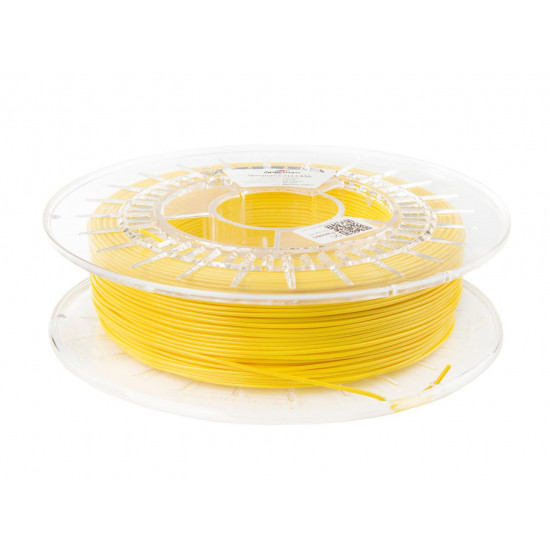

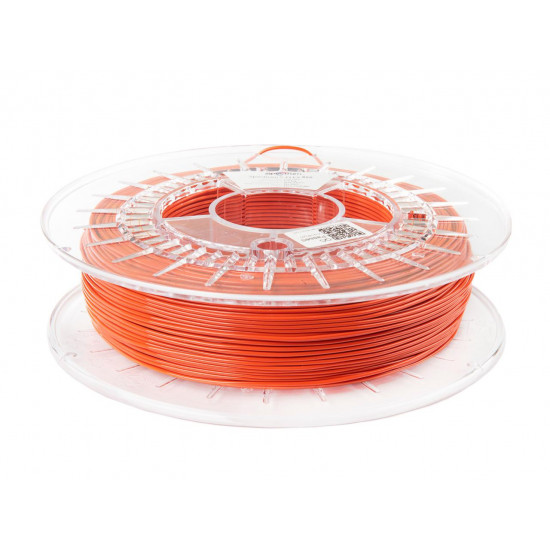

A 0.25 kg filament is wound on a transparent spool, which contains information about the type of material, diameter, color and recommended printing temperature. Each coil is packed in a vacuum with a dehumidifier. All in the original Spectrum Filaments foil cardboard.

Coil dimensions

• Outer diameter - 140 mm.

• Width - 44 mm.
• Inner diameter - 52 mm.
• Weight of empty coil - ± 120 g.

Verify quality of 3D plastic thread

Spectrum Filaments is the only company in Poland and one of the few in the world that has a tool for testing purchased filaments. VERIFY YOUR SPOOL is the most accurate quality control system on the market, ensuring that Spectrum Filaments products meet his stringent requirements.

Filament for 3D printers is produced by free extrusion, which is one of the most difficult extrusion processing technologies, due to the particularly significant influence of process parameters on product dimensions and material homogenization. During the manufacturing process, each 1mm of Spectrum Filaments is continuously measured in 2 axes with an accuracy of ±0.8 µm, resulting in a quality end product. To prove this, Spectrum Filaments, as one of the few manufacturers in the world, has introduced the possibility of an online presentation, individually for each coil produced:

• diameter travel along the entire length of the coil;
• average diameter;
• ovality;
• standard deviation.

Buy in Warsaw flexible plastic with a hardness of 85A
