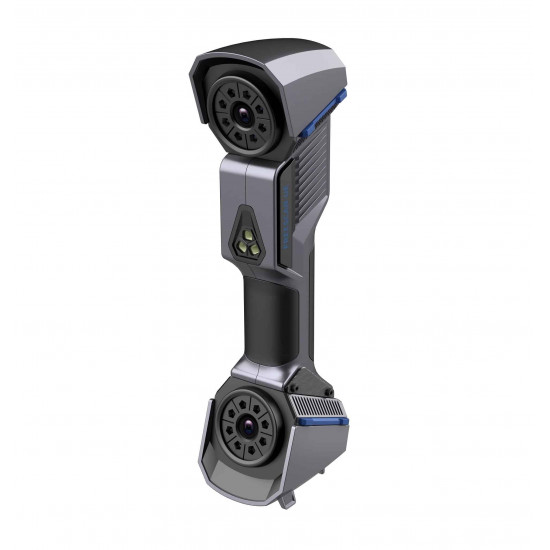

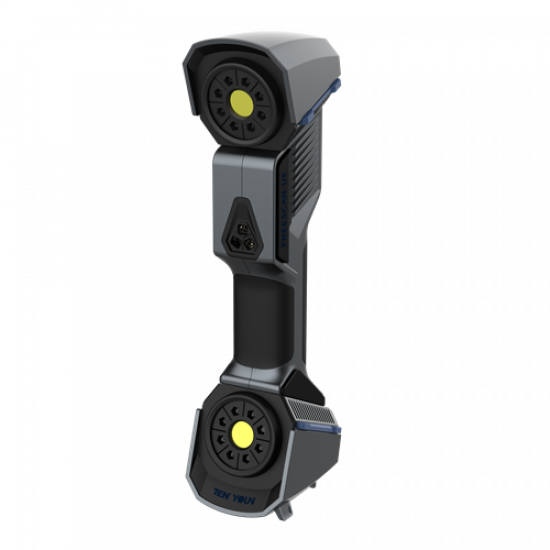

3D scanner SHINING 3D FreeScan UE11
The FreeScan UE11 metrological 3D scanner is a professional device with high metrological grade accuracy. Allows you to make accurate measurements in the most difficult operating conditions. It has an ergonomic and lightweight design that simplifies the operator's work. The 3D scanner provides fast, highly accurate metrological grade data that can be easily imported into data comparison software.
FreeScan UE11 applications include automotive, transportation, aviation, engineering and quality control. Despite the professional level of the device, this 3D scanner is suitable for both demanding users and those who start working with such devices. If you are looking for simple, high-precision inspection in your plant, the FreeScan UE11 is your choice.
- The blue laser allows you to scan dark and shiny objects.
- Ideal for high quality 3D modeling.
- Versatile and easy to use.
Features FreeScan UE11
Metrology Grade Data Collected Parameters
- Scanning accuracy up to 0.02 mm.
- Volumetric accuracy 0.02 mm + 0.04 mm/m.
- Scanning at a speed of 1 020 000 points/s.
Stability of repeatable measurements
FreeScan UE11 is a metrological 3D scanner that offers amazing stability during repeated measurements. That confirms the reliability of this device.
Portable and lightweight
Weighing only 750 g and a new ergonomic design, long-term operator work with this 3D scanner in the field will not be difficult.
Wide range of materials for adaptation
The device is well adapted to work in difficult conditions. The 3D scanner projects 22 lines of blue laser light, which allows you to quickly and easily scan including dark and mirror surfaces.
High performance
Large scan area allows readings up to 510 x 520 mm. This large field of view allows objects to be digitized more smoothly and efficiently.
Easy software integration
The scanned data is imported with a single mouse click into the quality control software: Geomagic Control X/Control X Essentials, Polyworks, Catia, Verisurf etc.
Easy to operate
The FreeScan UE11 software is highly customizable with a clear interface and instructions for the user throughout the entire workflow.
Professional metrological 3D scanner FreeScan UE11
FreeScan UE11 Specifications
- Scan mode: multi-line scan, single-line scan
- Scanning accuracy: up to 0.02 mm
- Volumetric accuracy: 0.02 + 0.04 mm/m
- Scanning speed: 1 020 000 points/s
- Working distance: 500 mm
- Scanning depth: 300 - 700 mm
- Scanning range: 510 x 520 mm
- Point distance: 0.05 - 3 mm
- Light source: 22 lines + 1 blue laser line
- Laser Class: class 2M (safe for eyes)
- Transfer mode: USB 3.0
- Dimensions: 298 x 90 x 74.5 mm
- Weight: 750 g
- Power supply: 12V, 5.0A
- Operating Temperature: 0 - 40 ℃
- Operating humidity: 10 - 90 %
- Wireless function: optional
- Certificates: CE, FCC, ROHS, WEEE, KC
