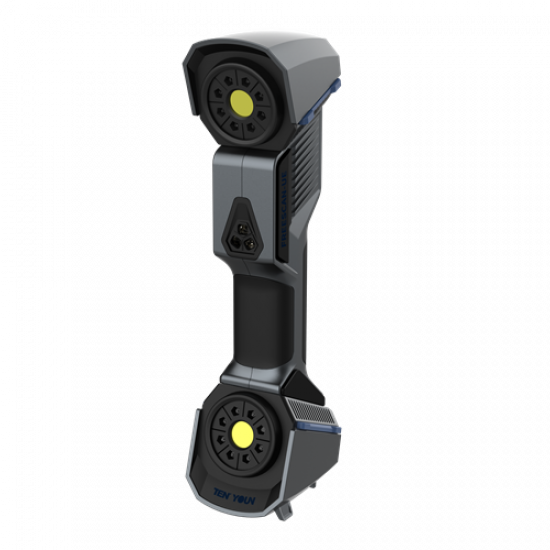

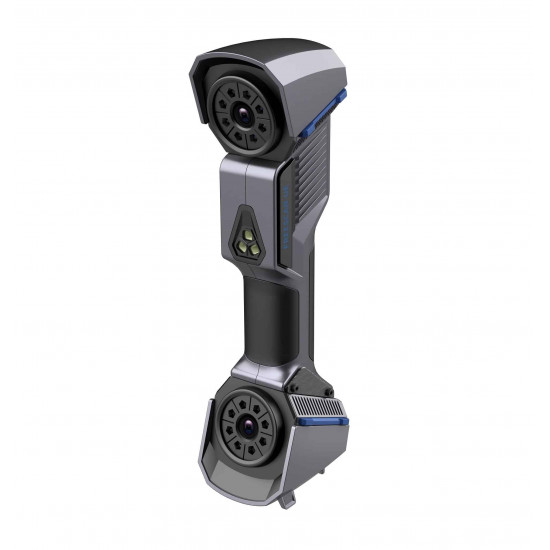

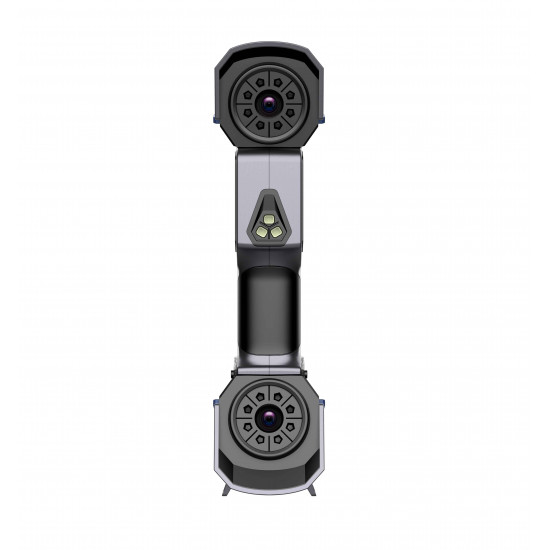

3D scanner SHINING 3D FreeScan UE7
Inspection 3D scanner FreeScan UE7 3D is a professional device that allows you to make accurate measurements even in difficult operating conditions. It has an ergonomic and lightweight design that simplifies operation and provides accurate metrological data. FreeScan UE7 applications include automotive, transportation, aviation, engineering and quality control. Despite the professional level of the device, this 3D scanner is suitable for both demanding users and those who start working with these devices. If you need simple, high-precision inspection in your production, the FreeScan UE7 is your choice.
- The blue laser allows you to scan dark and shiny objects.
- Ideal for high quality 3D modeling.
- Versatile and easy to use.
Features FreeScan UE7
Metrology Grade Data Collected Parameters
- Scanning accuracy up to 0.02 mm.
- Volumetric accuracy 0.02 mm + 0.04 mm/m.
- Scanning at a speed of 650 000 points/s.
Stability of repeatable measurements
The FreeScan UE7 3D Inspection Scanner provides amazing data stability with multiple measurements. Which confirms the reliability of this device.

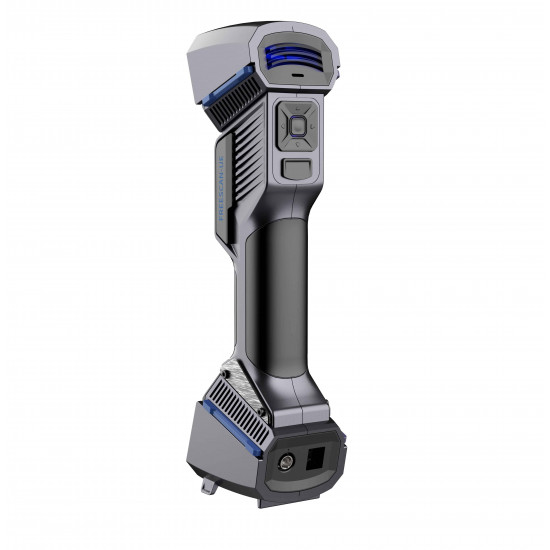

Portable and lightweight
Weighing only 750 g and a new ergonomic design, long-term operator work with this 3D scanner in the field will not be difficult.
Wide range of materials for adaptation

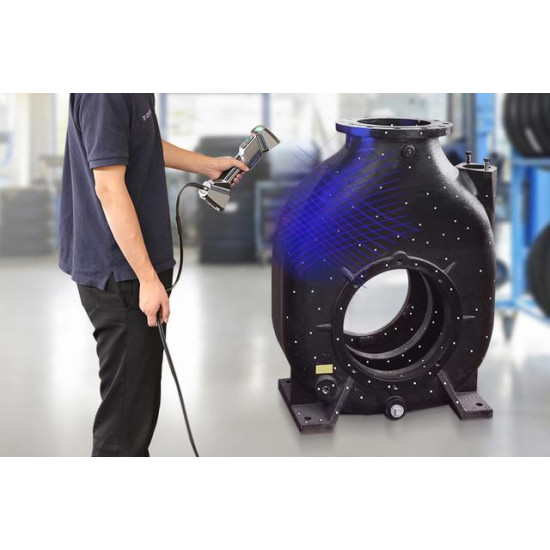

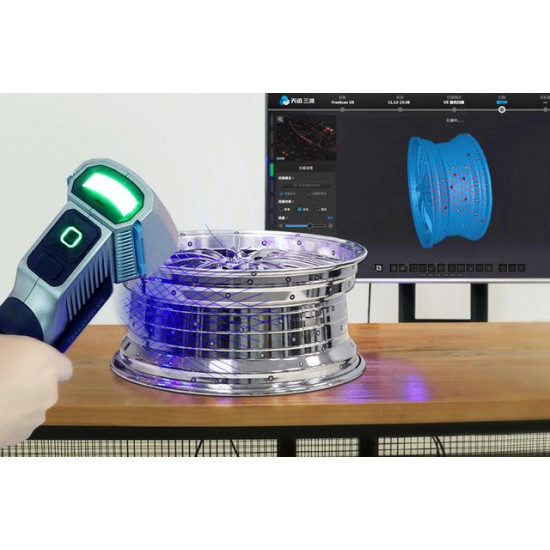

The device is well adapted to work in difficult conditions. The blue laser light allows you to scan even dark and specular surfaces.
High performance
Large scan area allows readings up to 510 x 520 mm. This large field of view allows objects to be digitized more smoothly and efficiently.

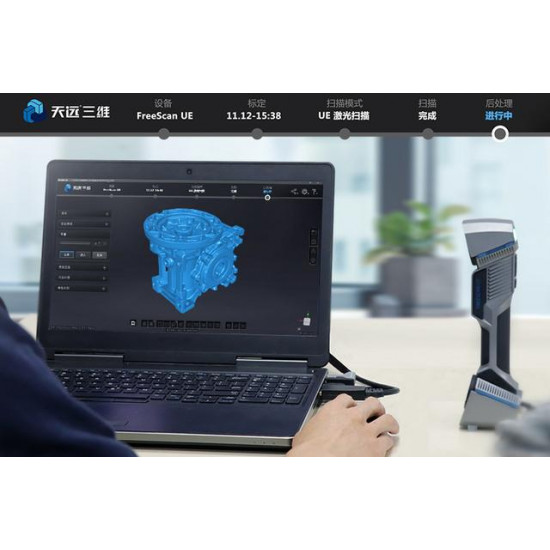

Easy software integration
The scanned data is imported with one click into the inspection software: Geomagic Control X/Control X Essentials, Polyworks, Catia, Verisurf etc.
Easy to operate
The FreeScan UE7 software is highly customizable with a clear interface and instructions for the user throughout the entire workflow.
Industrial inspection 3D scanner FreeScan UE7
FreeScan UE7 Specifications
- Scan mode: multi-line scan, single-line scan
- Scanning accuracy: up to 0.02 mm
- Volumetric accuracy: 0.02 + 0.04 mm/m
- Scanning speed: 650 000 points/s
- Working distance: 500 mm
- Scanning depth: 300 - 700 mm
- Scanning range: 510 x 520 mm
- Point distance: 0.05 - 3 mm
- Light source: 14 lines + 1 blue laser line
- Laser Class: class 2M (safe for eyes)
- Transfer mode: USB 3.0
- Dimensions: 298 x 90 x 74.5 mm
- Weight: 750 g
- Power supply: 12V, 5.0A
- Operating temperature: 0 - 40 ℃
- Operating humidity: 10 - 90 %
- Wireless function: optional
- Certificates: CE, FCC, ROHS, WEEE, KC
