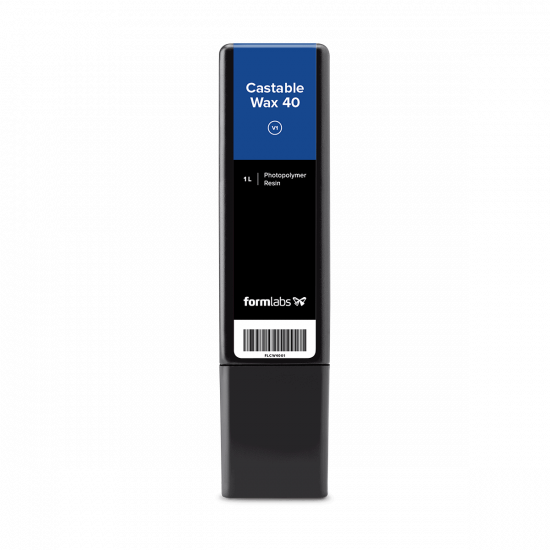

Cartridge Formlabs Castable Wax 40 Resin, 1L

Cartridge Formlabs Castable Wax 40 Resin, 1L

40% wax-filled photopolymer for reliable casting with zero ash content and clean burn-in, Castable Wax accurately captures all the details and makes a smooth surface stereolithography. Printed parts are suitable for custom testing and direct investment casting. Supports print resolution: 50 and 25 microns.

Castable Wax Resin is an acrylic photopolymer composed of liquid wax to provide a burnout process similar to a traditional wax schedule.

Castable Wax Resin prints parts with high mechanical strength compared to parts printed with conventional Castable, which requires further curing. Due to its high strength, Castable Wax is particularly suitable for large models and models with gentle functions and high demands on surface details.

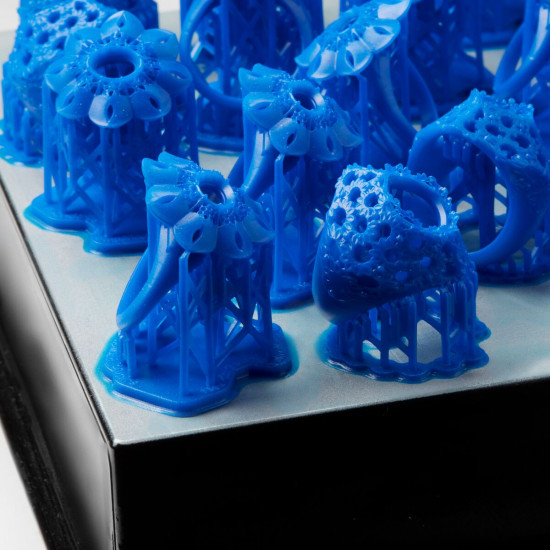

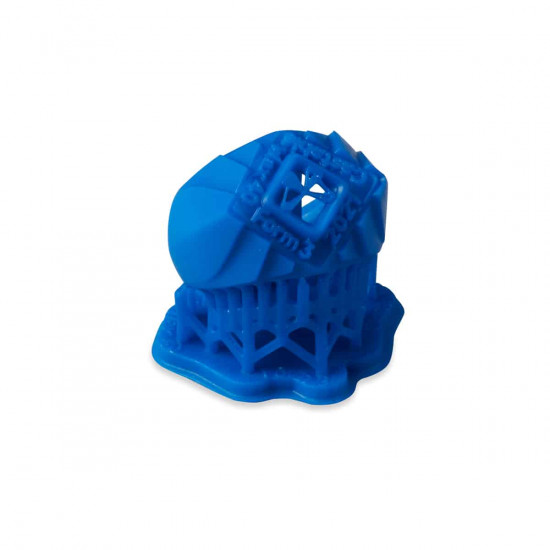

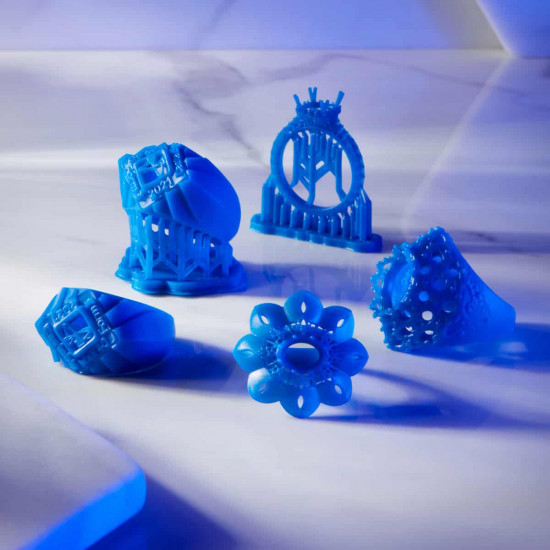

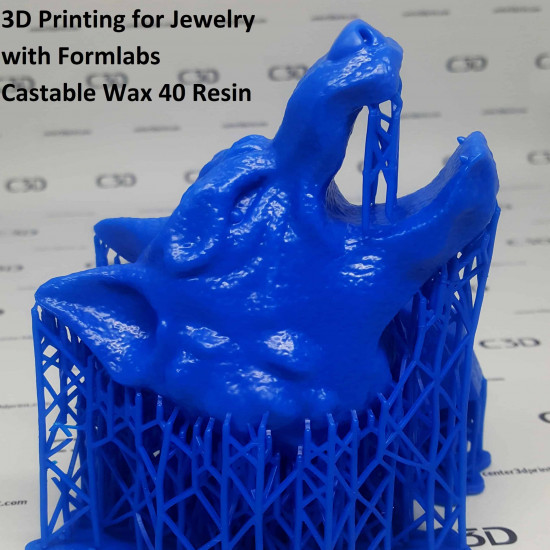

Formlabs Castable Wax Resin jewelry for 3D printing

Formlabs Castable Wax 40 Resin jewelry for 3D printing

See the Data Sheets of the Formlabs Castable Wax 40 Resin on "Download Data Sheets" tab


Material Parameters
Polymerization No required
Biocompatibility No
Volume (L) 1
Manufacturer country USA



Form 2
Form 3 / Form 3+
Form 3B / Form 3B+
Form 3L
Form 3BL
Printer compatibility:


---



Form 2 STD
Form 2 LT
Form 3 V1
Form 3 V2
Form 3 V2.1
Form 3L
Resin tank compatibility:
-
--
-



Form 2
Form 3B / 3B+
Form 3BL
Layer height:
25, 5025, 50
-


Jewelry Resins


Download Technical Data Sheets for Jewelry Resins:

Grey Resin
Grey Resin TDS (EN)
High Temp Resin
High Temp V2 Resin TDS (EN)
Castable Resin
Castable Resin TDS (EN)
Castable Wax Resin
Castable Wax Resin TDS (EN)
Castable Wax 40 Resin
Castable Wax 40 Resin TDS (EN)

Download Safety Data Sheets for Jewelry Resins:

Grey Resin
Grey Resin SDS (EN)
High Temp Resin

High Temp V1 Resin SDS (EN)

High Temp V2 Resin SDS (EN)

Castable Resin
Castable Resin SDS (EN)
Castable Wax Resin
Castable Wax Resin SDS (EN)
Castable Wax 40 Resin
Castable Wax 40 Resin SDS (EN)
