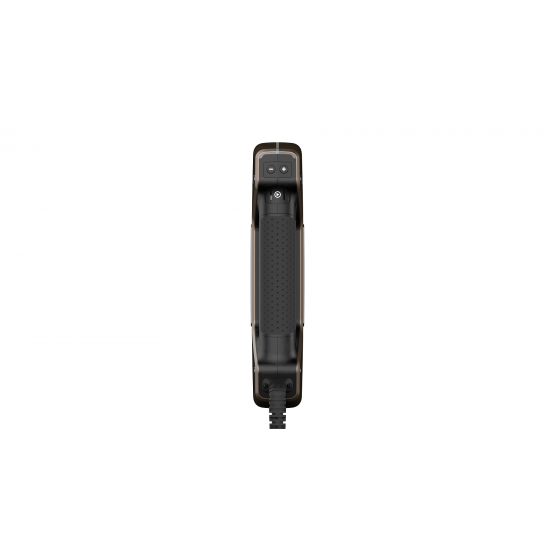

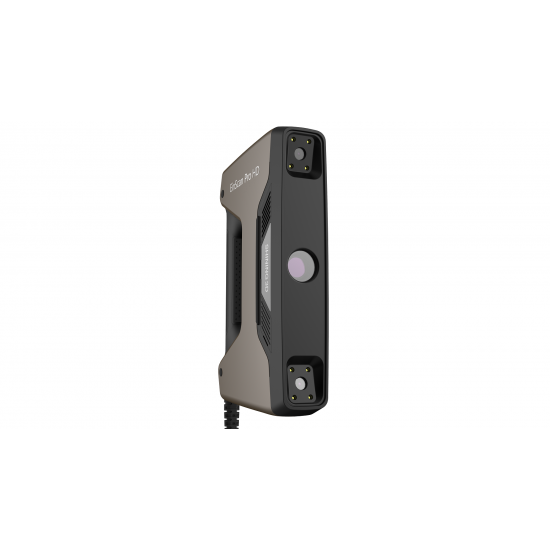

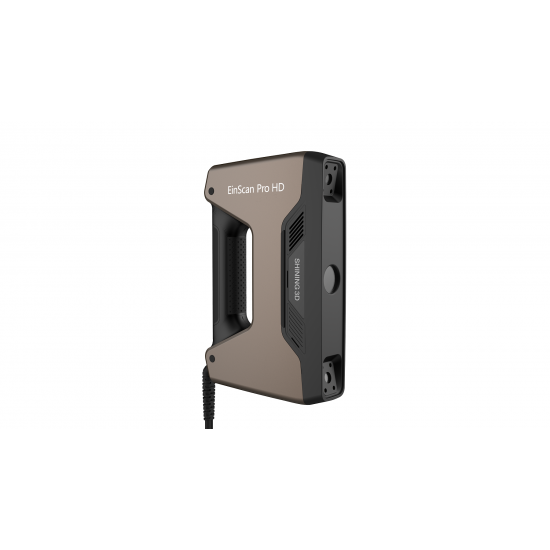

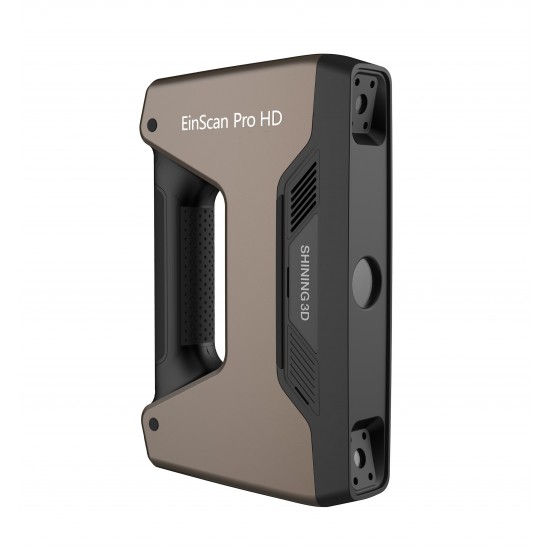

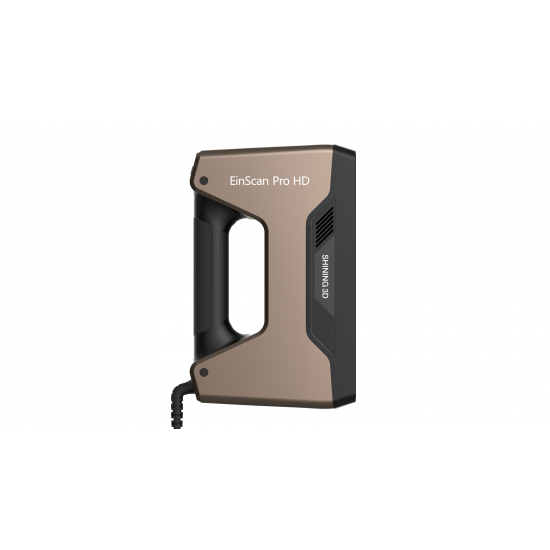

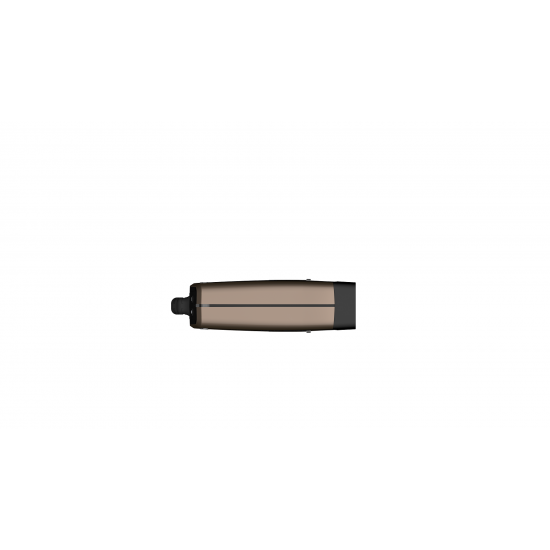

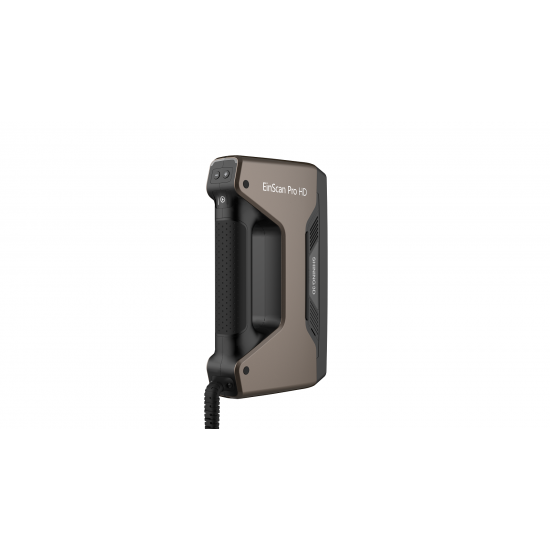

3D EinScan Pro HD scanner buy in Poland
SHINING 3D EinScan Pro HD is a new multifunctional portable 3D scanner of the EinScan Pro series of modular design.
Provides unsurpassed performance of manual 3D scanning, while maintaining high resolution and accuracy. Versatility and powerful optimization ensure maximum efficiency and quality of 3D scanning at a professional level. It is a reliable assistant for designers and engineers who need high quality 3D modeling.
- High accuracy, speed and resolution are capable when scanning objects of different sizes;
- Scanning dark and black colors;
- Use outdoors (it is necessary to use a cover or a canopy to avoid direct sunlight);
- USB 3.0 interface;
- ExScan Pro and Solid Edge SHINING 3D Edition software.
Impressive high resolution for small details
Thanks to the use of a new light design structure, line scanning, which was traditionally used in the fixed scan mode, is now used in the HD scan mode from the hands. The minimum distance to a point of 0.2 mm with the optimized algorithm provides high resolution and accuracy both at manual scanning, and at fixed scanning.
Fewer restrictions on 3D scanning of different materials
Thanks to a new hardware and software algorithm for lighting design, EinScan Pro HD is able to scan a wider range of dark or black objects and cast metal surfaces.
High speed scanning and data transfer
EinScan Pro HD has amazing scanning capabilities, and the USB 3.0 interface provides high data transfer speeds even when scanning objects with complex details.
Multifunction scanning SHINING 3D EinScan Pro HD
Several scan and alignment modes expand the scanning capabilities. Choose different modules for your needs.
Use the Color Pack module for full-color texture scanning and the Industrial Pack module for stationary scanning.
High accuracy for high quality 3D modeling
Depending on the positioning method, the scanner or objects may move during scanning. This scanner provides an accuracy of up to 0.04 mm in fixed scan mode. In the mode of manual scanning by means of marker alignment, volumetric accuracy reaches 0,045 mm + 0,3 mm/m.
Full color texture SHINING 3D EinScan Pro HD
With EinScan Pro HD you can quickly get full color texture and geometry using the Color Pack module. In addition, rich color can help align data.
Professional ExScan Pro software
ExScan Pro is a professional SHINING 3D professional software for 3D scanning and data processing, with a set of tools for scanning and editing the grid to create high-quality 3D models. Beginners and advanced users can easily get high-quality 3D data. Software ExScan Pro and its free upgrade for all users.
Solid Edge SHINING 3D Edition
EinScan Pro HD, includes Solid Edge SHINING 3D Edition with basic 3D CAD design features. It provides a convenient and powerful 3D design tool to help you realize your creative ideas.
Specifications
| Scan mode | Handheld HD Scan | Handheld Rapid Scan | Fixed scanning with the rotating Industrial Pack platform | Fixed scanning without turntable Industrial Pack |
| Volumetric accuracy | Up to 0.045 mm | Up to 0.1 mm | 0.04 mm (accuracy of one pulse) | 0.04 mm (accuracy of one pulse) |
| Scan speed | 10 fps 3,000,000 dots / sec | 30 fps 1,500,000 dots / sec | Single scan ＜ 0.5 sec | Single scan ＜ 0.5 sec |
| The distance between the points | 0.2 mm - 3 mm | 0.25 mm - 3 mm | 0.24 mm | 0.24 mm |
| The volume of one scan frame | 209 * 160 mm - 310 * 240 mm | |||
| Depth of field | ± 100 mm | |||
| Working distance | 510 mm | |||
| Light | LED | |||
| Scan alignment mode. Leveling: | by markers and by features of geometry | |||
| mixed mode | mixed mode | manually | manually | |
| by texture features | by labels on the turntable | |||
| Texture scan | Yes (with Color Pack) | |||
| Use outdoors | Direct sunlight should be avoided. Use a cover or shelter | |||
| Special scanning conditions | For transparent, very bright objects or too dark, use a powder or spray to scan | |||
| Software | ExScan Pro, Solid Edge SHINING 3D Edition | |||
| Formats | OBJ, STL, ASC, PLY, P3, 3MF | |||
| Scanner weight (including USB cable) | 1.13 кг | |||
| Compatible OS | Win10, 64bit | |||
| Recommended configuration | Graphics card: NVIDIA GTX1080 and higher; video memory:> 4G, processor: I7-8700, memory: 64G, interface: high-speed USB 3.0 | |||
| Configuration requirements | Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G | |||
