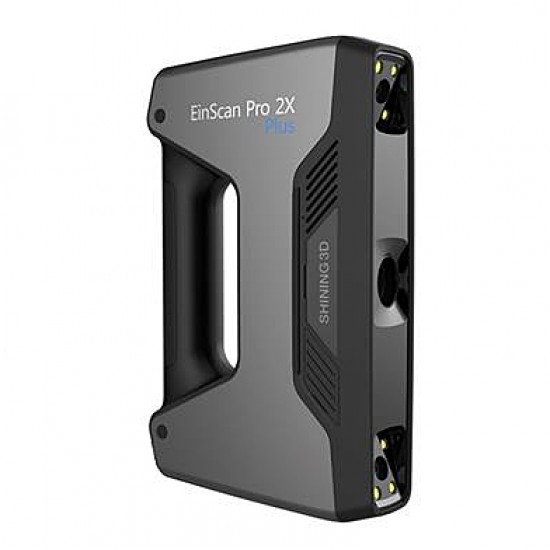

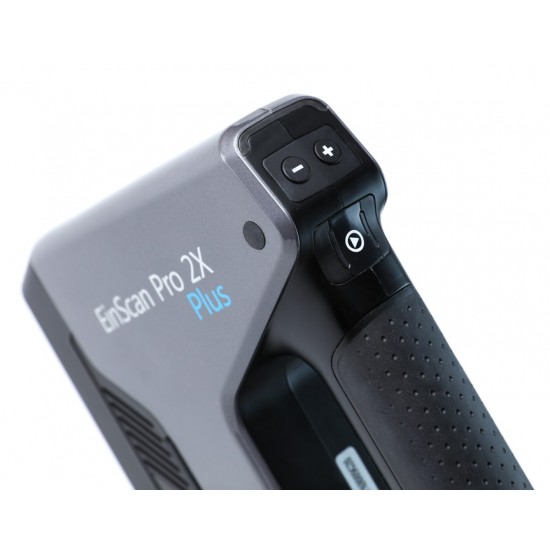

3D scanner EinScan Pro 2X Plus buy in Krakow

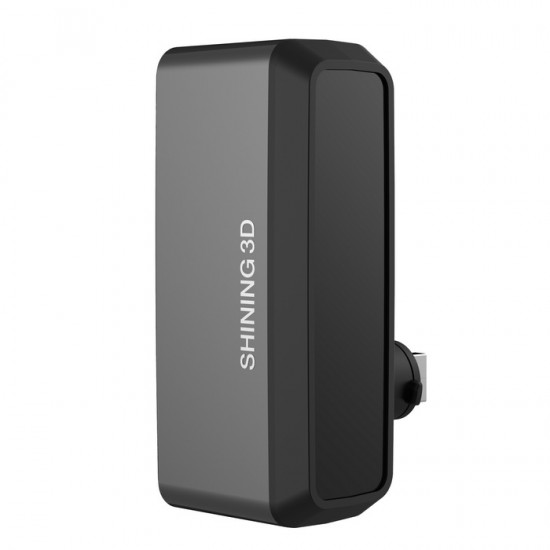

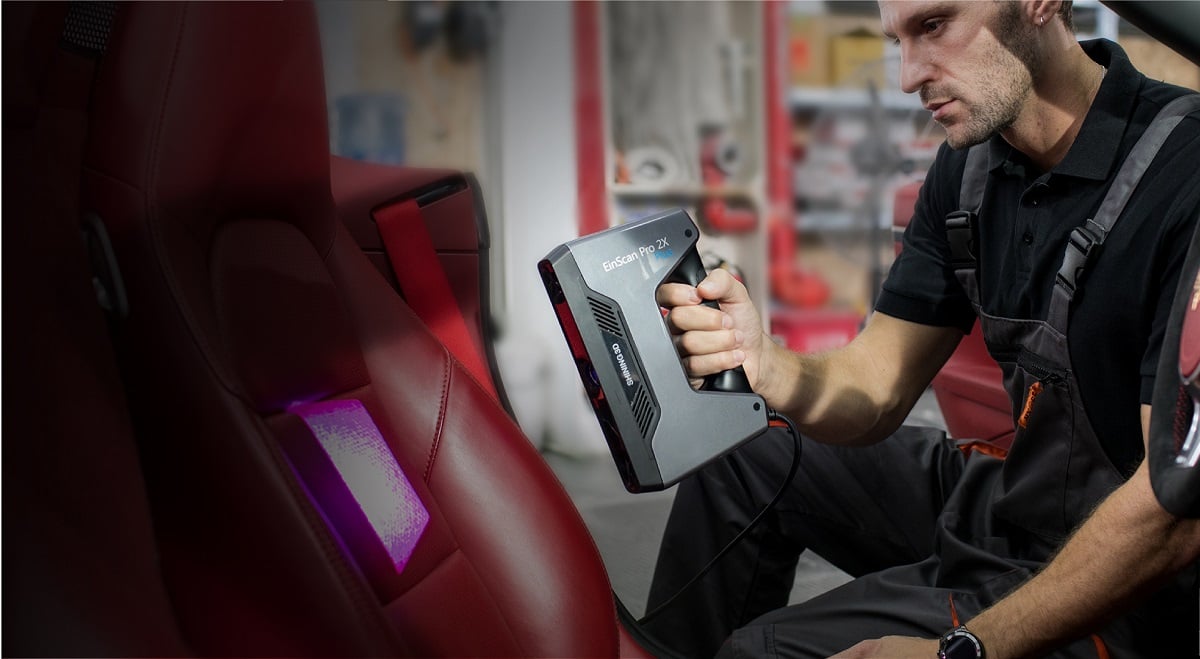

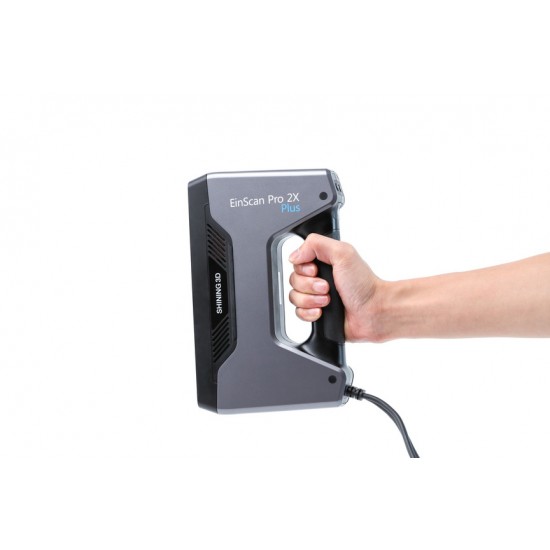

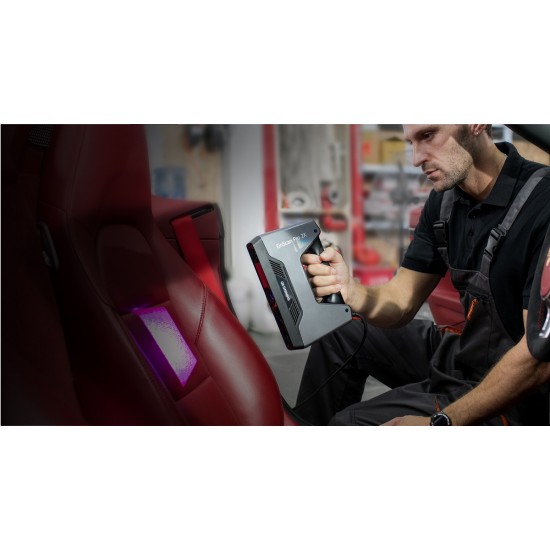

The EinScan Pro 2X Plus 3D scanner is a professional 3D digitizing solution for versatile tasks in a simple form. Offers enhanced Handheld HD scan mode and extended scan range.
The EinScan Pro 2X Plus 3D scanner is a professional 3D digitizing solution for versatile tasks in a simple form. Offers enhanced Handheld HD scan mode and extended scan range. Captures a 3D model of medium to large sized objects with high efficiency. Meets requirements for a wider range of applications.
One of the most sought-after 3D scanners Shining3D presents to your attention the pearl of the new generation - the X-line. The most powerful and accurate scanner from the line is EinScan Pro 2X Plus. Its technical characteristics are truly impressive! Don't limit your ideas!
The scanning speed speaks for itself - 30 frames per second - 1.500.000 points/s.
Features
- Excellent detail

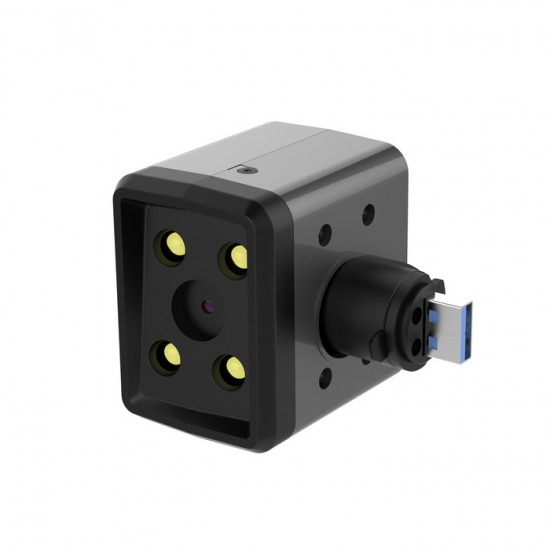

- Ability to align 3D scans by texture, using the Color Pack
- High build quality of the device
- Convenient ergonomics
- Compactness and lightness
- Relatively low price
Specifications

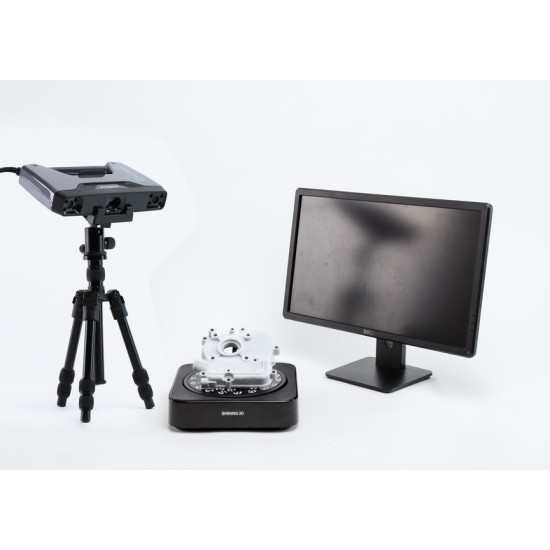

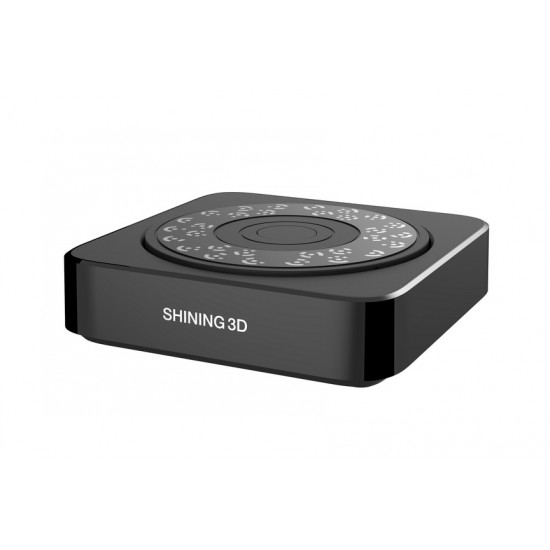

| Scan mode | Handheld HD Scan | Handheld Rapid Scan | Fixed Scanning with Industrial Pack Turntable | Fixed scanning without Industrial Pack turntable |
| Scan Accuracy | up to 0.05 mm | up to 0.1 mm | 0.04mm (single pulse accuracy) | 0.04mm (single pulse accuracy) |
| Volumetric accuracy | 0.3 mm/m (with marks) | 0.3 mm/m (with marks) | - | - |
| Scanning speed | 20 frames per second 1,100,000 points / sec 100 capture lines | 30 frames per second 1.500.000 dots / sec | Single scan: <0.5 sec | Single scan: <0.5 sec |
| Distance between points | 0.2 mm - 3 mm | 0.2 mm - 3 mm | 0.24 mm | 0.24 mm |
| Volume of one scan frame | 208 * 136 mm - 312 * 204 mm | |||
| Depth of field | ± 100 mm | |||
| Working distance | 510 mm | |||

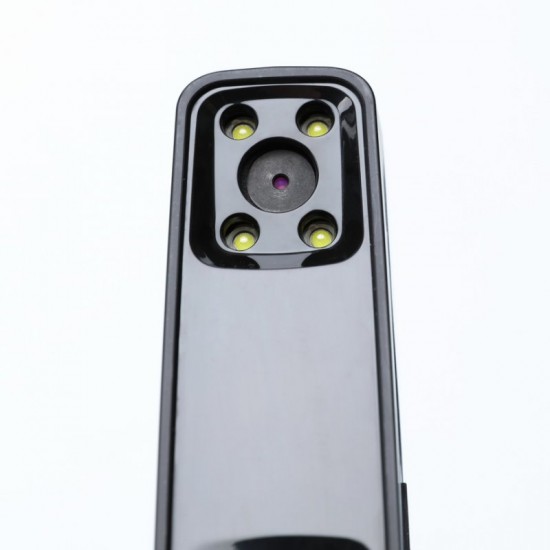

| Light source | LED | |||
| Scan alignment mode | Align to markers | Alignment by markers, geometry features, mixed mode | Alignment to marks on turntable, to markers, manual alignment | Alignment by markers, by geometry features, manual |
| Texture scan | No | Yes (with Color Pack) | Yes (with Color Pack) | Yes (with Color Pack) |
| Outdoor use | Indoor use only | |||
| Special scanning conditions | For translucent, highly reflective or too dark objects, use powder or scanning spray | |||
| Printing products | The ability to export a 3D model directly for 3D printing | |||
| Formats | OBJ, STL, ASC, PLY, P3, 3MF | |||
| Scanner weight | 1.13 kg | |||
| Compatible OS | Win 7, Win 8, Win 10, 64 bit | |||
| PC Requirements | Display: NVIDIA GTX770 or higher; Video memory> 4G; CPU: i7 or higher; RAM: 16 GB or higher; USB 3.0 | |||
| Warranty | 1 year | |||
| The country of manufacture | China | |||
Buy the EinScan Pro 2X Plus 3D scanner at the best price
