3D scanner EinScan Pro 2X to buy Poland

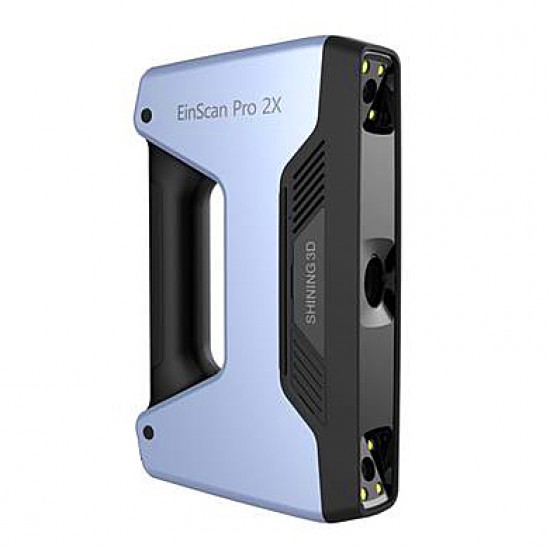

The EinScan Pro 2X 3D Scanner is a versatile portable 3D scanner for high-precision results. It belongs to the first generation of 3D scanners from the leading company in the market Shining3D. Great for scanning small and medium sized objects. Scanning is faster and more accurate. Great idea for high quality 3D modeling.
Features
- Brand new user interface and work panel
- Convenient work
- Updated algorithm
- Simultaneous viewing of data
- High compatibility - source file formats are standard and include STL, OBJ, PLY, ASC and P3
- Compatible with most software packages on the market
- Grid editing: merge, space stitching, data simplification, anti-aliasing, sharpness, etc.
In addition, this scanner is lightweight and has a convenient handle. It is compact, you can take it with you and easily scan a variety of objects. Do not limit the capabilities of 3D scanning technology with this device! If you need more than HD precision - just mount the scanner on a tripod with Industrial Pack. The device connects via USB 3.0 to a computer or laptop. Its scanning speed reaches 1,500,000 dots per second (at 30 frames per second) in manual scanning mode.
In the mode of fixed or automatic scanning the accuracy reaches 0,04 mm, and if to apply markers in the mode of manual scanning the accuracy reaches 0,05 mm + 0,3 mm/m.
The minimum scanning distance in manual and HD scanning modes is 0.2 mm, so the scans are very detailed. Einscan Pro 2X supports 4 scan modes: manual quick scan, manual HD scan, fixed scan and automatic scan plus several modes with alignment: function alignment, marker alignment, point alignment with turntable and manual alignment.
Specifications
| Scan mode | Handheld HD Scan | Handheld Rapid Scan | Fixed scanning with the rotating platform Industrial Pack | Fixed scanning with the rotating platform Industrial Pack |
| Scanning accuracy | up to 0.05 mm | up to 0.1 mm | 0.04 mm (accuracy of one pulse) | 0.04 mm (accuracy of one pulse) |
| Volumetric accuracy | 0.3 mm / m (with labels) | 0.3 mm / m (with labels) | - | - |
| Scan speed | 20 frames per second 100,000 dots / sec 7 data capture lines | 30 frames per second 1,500,000 dots / sec | Single scan: <1 sec | Single scan: <1 sec |
| The distance between the points | 0.2 mm - 2 mm | 0.2 mm - 2 mm | 0.16 mm | 0.16 mm |
| The volume of one scan frame | 135 * 100 mm - 225 * 170 mm | |||
| Depth of field | ± 100 mm | |||
| Working distance | 400 mm | |||
| Light | LED | |||
| Scan alignment mode | Alignment by markers | Alignment by markers, geometry features, mixed mode | Alignment by marks on the turntable, by markers, manual alignment | Alignment on markers, on features of geometry, manual |
| Texture scan | No | Yes (with Color Pack) | Yes (with Color Pack) | Yes (with Color Pack) |
| Recommended object size | 30 mm - 4 m | |||
| Special scanning conditions | For transparent, very bright objects or too dark, use a powder or spray to scan. Use only indoors | |||
| Printing products | Ability to export a 3D model immediately for 3D printing | |||
| Formats | OBJ, STL, ASC, PLY, P3, 3MF | |||
| Scanner weight | 1.13 кг | |||
| Compatible OS | Win 7, Win 8, Win 10, 64 bit | |||
| PC requirements | Display: NVIDIA GTX770 or higher; Video memory> 4G; CPU: i7 or higher; RAM: 16 GB or higher; USB 3.0 | |||
| Guarantee | 1 year | |||
| Producing country | China | |||
