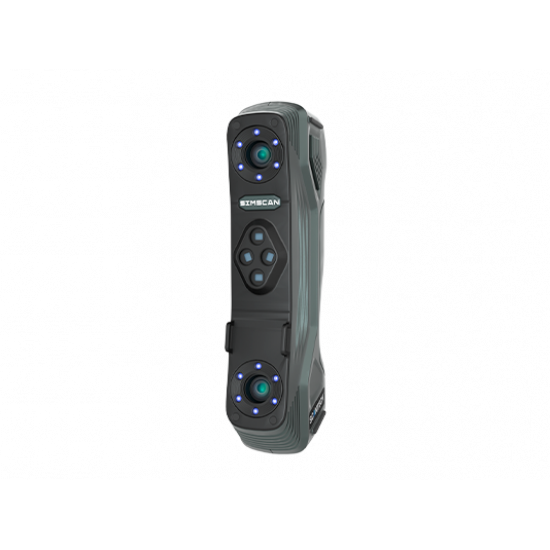

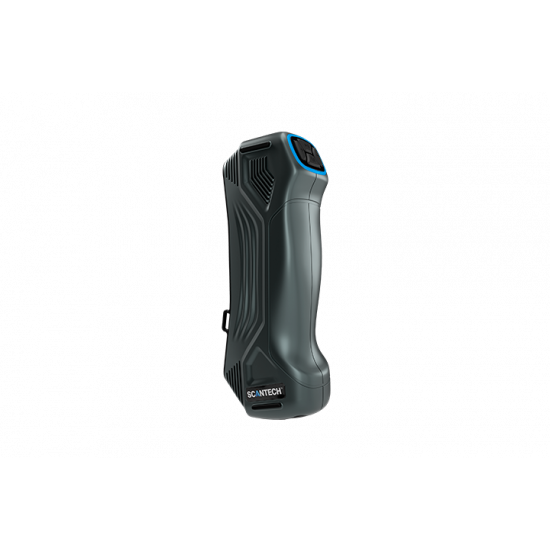

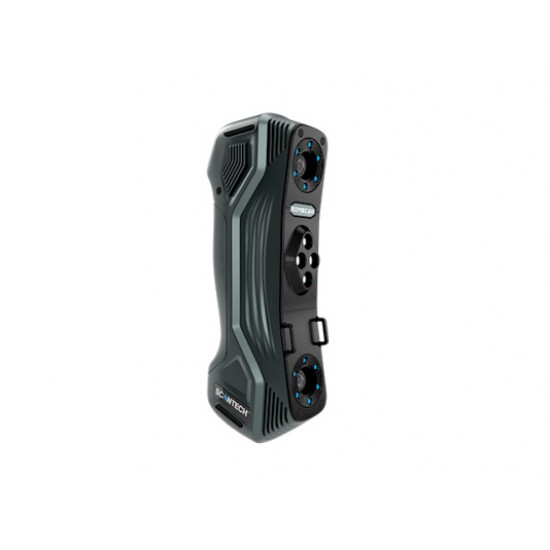

Handheld 3D scanner Scantech Simscan

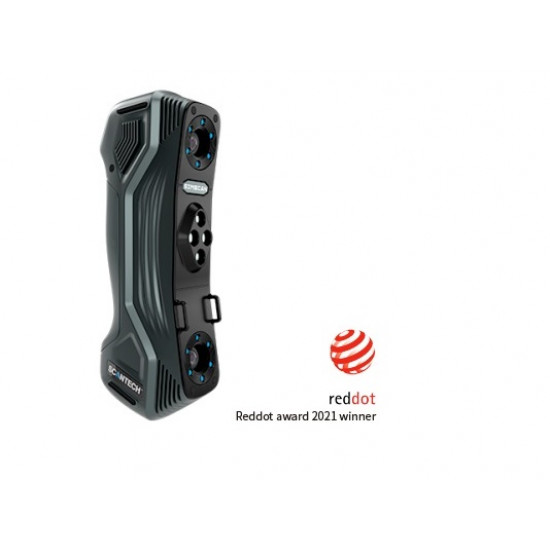

Handheld 3D Scanner Scantech Simscan can be considered the leader among portable scanning devices. This innovative palm-sized device is a noteworthy product in the 3D optical metrology industry. Winner of Reddot Award 2021.
Fast, accurate and easy metrology grade 3D scanning is your new Scantech Simscan.
Environmental conditions independence
True scanning portability and independence from conditions and wiggle room during process.
With its small dimensions of 203 × 80 × 44 mm, this 3D scanner fits easily into your palm and scans in hard-to-reach and limited places. Excellent volumetric accuracy up to 0.020 mm + 0.035 mm/m. Manufacturer claims that the device is capable of scanning over a wide temperature range from -10 to +40 °C.
Excellent scanning speed
A metrological-grade measuring system helps to capture every detail of the geometry and build a three-dimensional model of an object in a very short time.
The Simscan 3D scanner digitizes surface geometry very fast. Thanks to its 30 cross laser projections, a wide-angle Ultra HD camera, a large frame area of 410 x 400 mm and measurements up to 2,020,000 points per second. The aerospace-grade interface provides high-speed data transfer.
One Hand Control
Scantech has found a balance between weight and performance in this instrument. Scan with just 570 g and 203 x 80 x 44 mm handheld SIMSCAN 3D scanner with one hand. Simscan's multi-function buttons allow you to quickly switch between functions. And, of course, you'll love Simscan's durable, ergonomic all-metal body design with its non-slip surface.
Detailing any geometry
Three scan modes allow you to select the number of laser lines to be projected. Scan fast, scan detailed and accurate, scan surfaces with deep depressions and holes in geometry:
- Ultra-fast scanning,
- Hyperfine scanning,
- Deep hole scanning.
Strict Calibration Services
SCANTECH has a dedicated ISO 17025 accredited calibration laboratory. The laboratory is staffed by certified technicians to perform calibration in accordance with the ISO 17025 accreditation rules for SCANTECH 3D scanners.
Calibration and acceptance testing of SIMSCAN 3D scanners are based on the JJF 1951 specification and the VDI/VDE 2634 standard. The 3D scanners in this range will have fully traceable and globally recognized accuracy certificates.
High quality product quality
SCANTECH Metrology Laboratory is committed to continuous improvement of the management system and quality of Scantech products to ensure that they comply with ISO/IEC 17025 standards. efforts to guarantee the reliability and high quality of products.
Application of Scantech Simscan
Santech Simscan is a metrological grade measuring instrument for aerospace, automotive, energy, industrial control, virtual reality and film industry, gaming and more.
Buy Simscan 3D scanner in Poland
In the Center 3D Print store you can purchase a wide range of portable 3D scanners from different manufacturers. Our experts will help you to select a 3D scanning device for your needs. Delivery throughout Europe.
We provide free training with Simscan. For more information on training, please contact us.
